Dual mass flywheel ?

Posts

Post 497619 by oblark on 2012-05-12 18:07:16

Hi everyone, Split my engine and gearbox today to find I think I have a dual mass flywheel. I have an internal slave cylinder. My question is this, can I fit a single mass flywheel with a 850r clutch and still use my internal slave cylinder ? Rob

Post 497621 by Dangerous Dave on 2012-05-12 18:13:52

You'll be able to tell if its dual mass by looking at the friction plate, if there are no springs in it then its a dual mass. Can't really help with the swap, but Frankie did it on his, not sure if he has the internal slave cylinder.

Post 497633 by 960kg on 2012-05-12 18:45:15

[quote=oblark;497619]Hi everyone, Split my engine and gearbox today to find I think I have a dual mass flywheel. I have an internal slave cylinder. My question is this, can I fit a single mass flywheel with a 850r clutch and still use my internal slave cylinder ? Rob[/quote] Yes you can.....

Post 497636 by oblark on 2012-05-12 18:49:27

[quote=960kg;497633]Yes you can.....[/quote] Good, just need to get my hands on a single mass flywheel then ........

Post 497654 by t5 pete on 2012-05-12 19:12:55

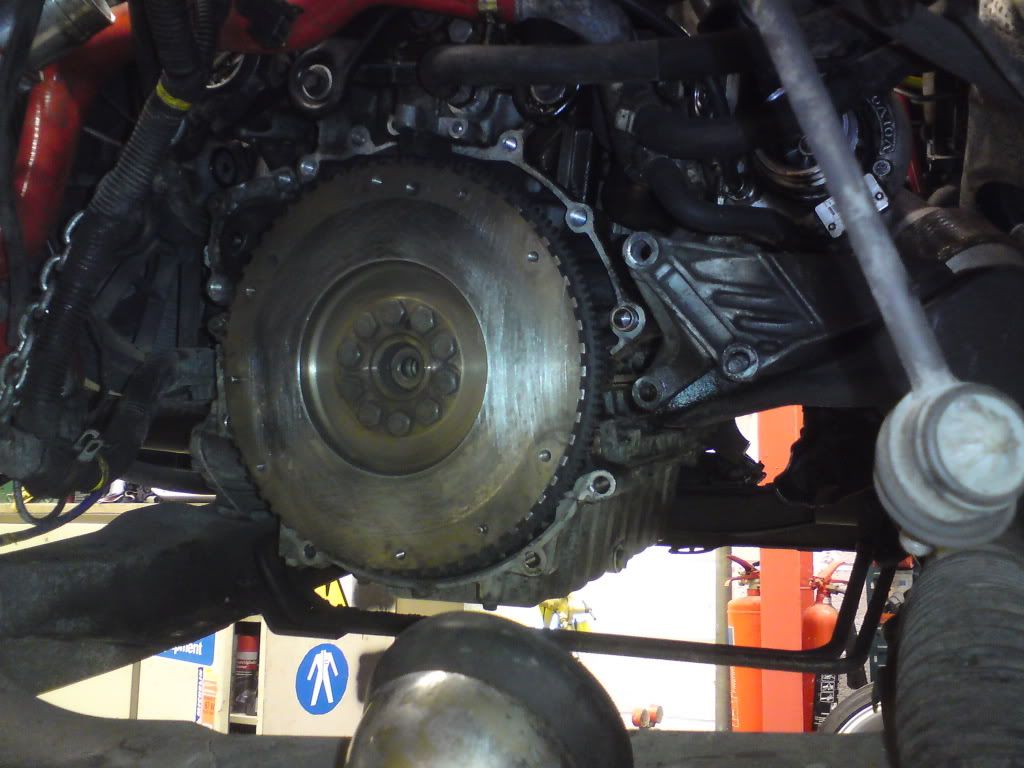

Does it look like this Image

Post 497655 by T5frankie on 2012-05-12 19:15:03

[quote=bomb192uk;497621]You'll be able to tell if its dual mass by looking at the friction plate, if there are no springs in it then its a dual mass. Can't really help with the swap, but Frankie did it on his, not sure if he has the internal slave cylinder.[/quote] yes i still used an internal slave, hence the issues about it being knackered lol

Post 497657 by t5 pete on 2012-05-12 19:16:14

I never realised the 850's t5 had a internal slave clyinder

Post 497659 by Dangerous Dave on 2012-05-12 19:18:37

The 850's don't Pete, it was introduced in the x70 range (not straight away though) to reduce clutch judder and make the pedal lighter.

Post 497663 by t5 pete on 2012-05-12 19:21:02

but doesnt the op have a 850 the one in his sig?? Or have i missed summert as usual lol

Post 497671 by Dangerous Dave on 2012-05-12 19:25:54

LOL, I get it now. Good point, might have been changed to a newer gearbox (and engine possibly?).

Post 497674 by oblark on 2012-05-12 19:28:18

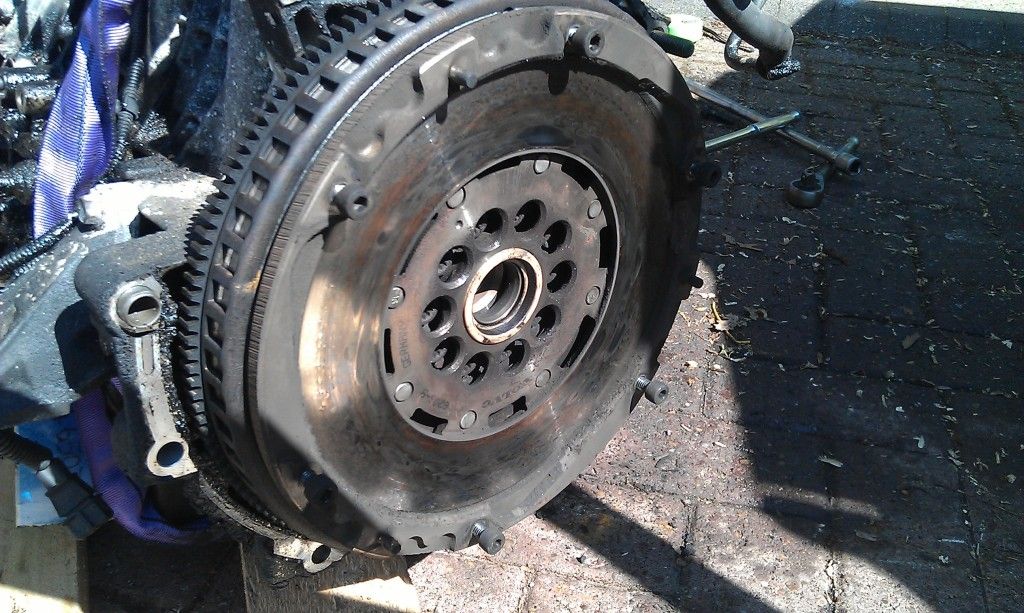

[quote=t5 pete;497654]Does it look like this Image[/quote] Mine looks like this Image The friction plate has no springs in it. Over the last week after my cambelt jumped I discovered that someone in the past has replaced the orginal engine/box for a early V70 engine/box.

Post 497683 by t5 pete on 2012-05-12 19:33:41

Certainly not like the single one in myne then lol

Post 497690 by Dangerous Dave on 2012-05-12 19:38:29

My dual mass is different, but I suppose its an earlier (crappier) design.

Post 497978 by 960kg on 2012-05-13 16:40:02

My `97 V70 T5 is SMF and external slave cylinder, Throttle cable, Bosch M4.4
